Minimum Cost Flow

Authors: Siyong Huang, Benjamin Qi

Triangle Inequality, Johnson's Algorithm, and Min Cost Flow

Edit This Page

In this section I will briefly walk over my understanding of min cost flow. I would highly recommend reading through CP-Algorithm's Min Cost Flow to understand the solution idea first. Additionally, check the TopCoder tutorial for a more detailed explanation.

Triangle Inequality

In graph theory, the Triangle Inequality states that if there is an edge uvu \rightarrow v with weight ww, and dkd_k be the shortest path to node kk (for some reasonable definition of shortest path), then dvduwd_v - d_u \leq w.

Resources
Wikipedia

Mainly in geometry, but it has the gist of the idea.

Johnson's Algorithm

The main idea of Johnson's Algorithm is that if all edge weights are positive, then running Dijkstra's from each node would result in a O(VElogE)\mathcal{O}(VE \log E) algorithm. If there are any negative edges, Johnson's Algorithm defines a potential function π\pi, such that for every edge u,v,wu,v,w, the following holds: w>=π(u)π(v)w>=\pi(u)-\pi(v). Then, each edge weight can be transformed into ww+π(v)π(u)w \rightarrow w + \pi(v)-\pi(u), resulting in positive weight. This condition coincides with the Triangle Inequality, so we can arbitrarily pick a node and run a O(VE)\mathcal{O}(VE) shortest path algorithm to determine this function.

Minimum Cost Flow

The general idea of Min Cost Flow is to repeatedly push flow along the shortest path. Since flow graphs have negative edges, each step naively would take O(VE)\mathcal{O}(VE) time. To speed it up, we can use the same potential function from Johnson's Algorithm to employ Dijkstra for this process. In this case we must use distance from SS, the source node, as the π\pi function. At each step, run Dijkstra's using the π\pi function, update the π\pi function to match the current distances, and then push flow along the shortest path, reversing edges as needed. Once flow is met or the sink is unreachable, terminate.

Important Clarification

Note that the π\pi function stores values before the edge reverses happen. Luckily the triangle inequality's equality case is along the shortest path, meaning that in a flow network it holds both forwards and backwards along edges in the shortest path. This means that although the π\pi function does not store the shortest paths, it still satisfies the triangle inequality for all edges.

π(u)π(v)=w    π(v)π(u)=w\pi(u)-\pi(v)=w \implies \pi(v)-\pi(u)=-w

Resources
CP-Algorithms

Note: Does not use optimal solution, but explains the concept well.

TopCoder

Implementation

With all this being said, here is my implementation.

template <int MN, int MM>
struct MCF // MN = nodes, MM = edges [assume edges one-directional]
{
public:
int N, M, S, T;
int flow[MM * 2], cap[MM * 2], hd[MN], nx[MM * 2], to[MM * 2], cost[MM * 2];
int pi[MN], p[MN], d[MN];
int vis[MN];
void init(int n, int s, int t) {
N = n, S = s, T = t;

Also check out Benq's Implementation and KACTL's Implementation (which are a lot better than mine).

Problems

StatusSourceProblem NameDifficultyTags
CFNormal
Show TagsMCF
CFNormal
Show TagsMCF
CFNormal
CFHard
Show TagsBitmasks, MCF
CFVery Hard
CFVery Hard

Applications

Assignment Problem

Focus Problem – try your best to solve this problem before continuing!

The assignment problem is best understood as a min cost max flow problem. In our formulation, we will assign WW workers to JJ jobs, JWJ \ge W, and the cost of assigning the iith job to the jjth worker is Ci,jC_{i,j}.

We will create a flow network with a source node SS, job nodes JiJ_i, worker nodes WjW_j, and a sink node EE.

We will have the following edges:

  • (S,Ji)(S, J_i) with (capacity,cost)=(1,0)(capacity, cost) = (1, 0)
  • (Ji,Wj)(J_i, W_j) with (1,Ci,j)(1, C_{i,j})
  • (Wj,E)(W_j, E) with (1,0)(1, 0)

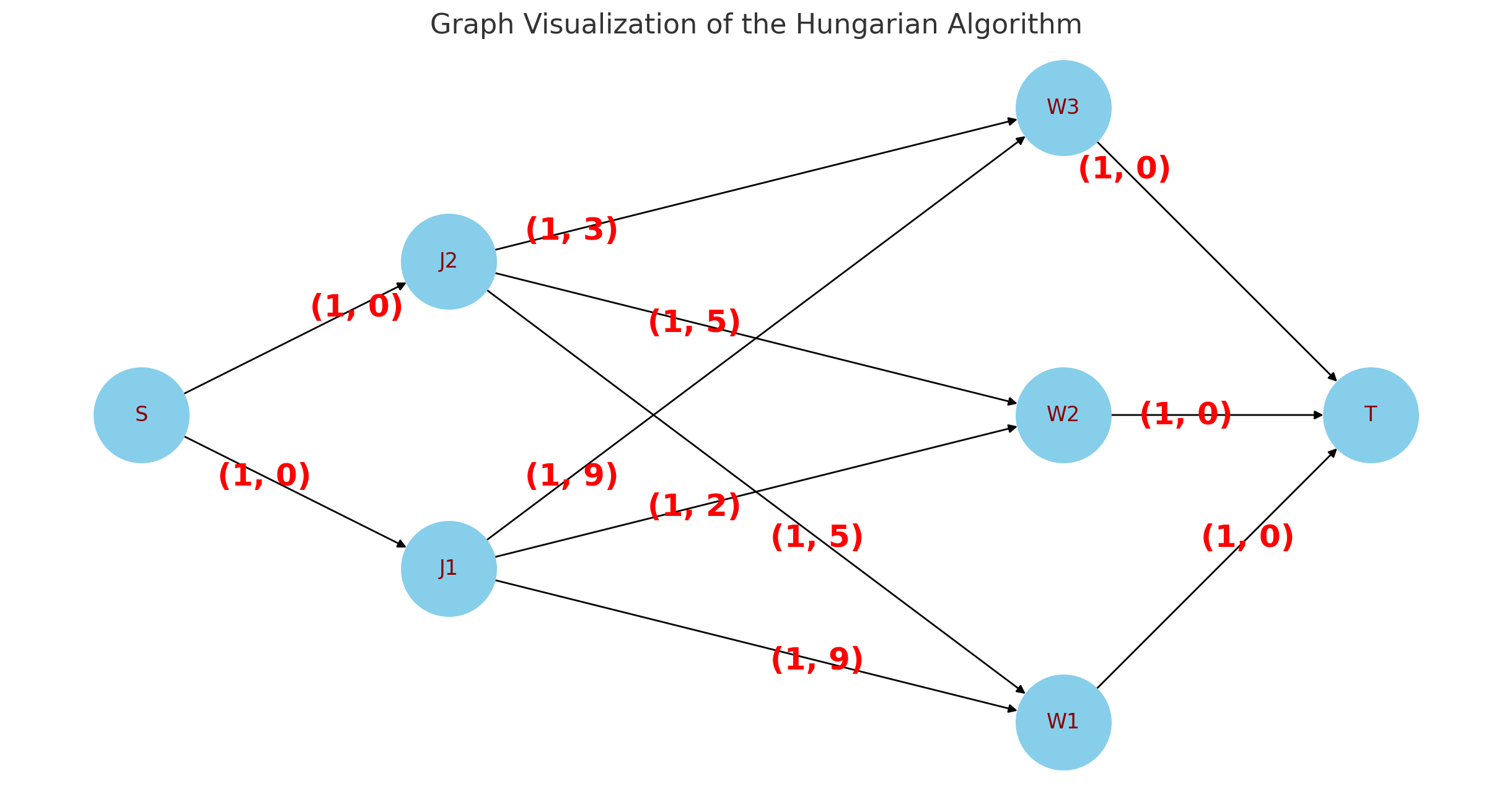

The answer will be the minimum cost of the max flow of the graph. An example:

Hungarian Algorithm Flows Diagram

To solve this, we will use the min cost max flow algorithm detailed above. In every iteration of the algorithm, we will assign a job to a worker. In each iteration, we will first assign the job to an auxiliary worker, then we will try to find an augmenting path with minimum cost. To optimize this, we will only run Dijkstra on the worker nodes. For details, refer to the code.

Since there are JJ iterations (for each job) and each iteration takes O(W2)O(W^2) time, the overall time complexity is O(JW2)O(J W^2).

Implementation

From Wikipedia (which is then copied from e-maxx):

#include <bits/stdc++.h>
using namespace std;
int ckmin(int &a, int b) { return a > b ? ((a = b), true) : false; }
/**
* @return the jobs of each worker in the optimal assignment,
* or -1 if the worker is not assigned
*/
template <class T> vector<int> hungarian(const vector<vector<T>> &C) {
StatusSourceProblem NameDifficultyTags
CFEasy
KattisEasy
