So far, every edge in our flow network has had a capacity that serves as an upper bound on the flow through it: $0 \le f(e) \le c(e)$. We now consider networks where each edge $e$ additionally has a lower bound $\ell(e)$, so that any valid flow must satisfy

In other words, we're now required to push at least $\ell(e)$ units of flow along $e$. This single extension is surprisingly powerful: many problems that look nothing like flow ("each task must be performed at least $x$ times", "each person sings between $a$ and $b$ songs") reduce to it.

Feasible Circulation

Let's start with the simplest version, where there is no source or sink. A circulation is an assignment of flow to every edge such that

• every edge respects its bounds: $\ell(e) \le f(e) \le c(e)$, and
• conservation holds at every vertex: the flow in equals the flow out.

The question is whether a valid circulation exists at all.

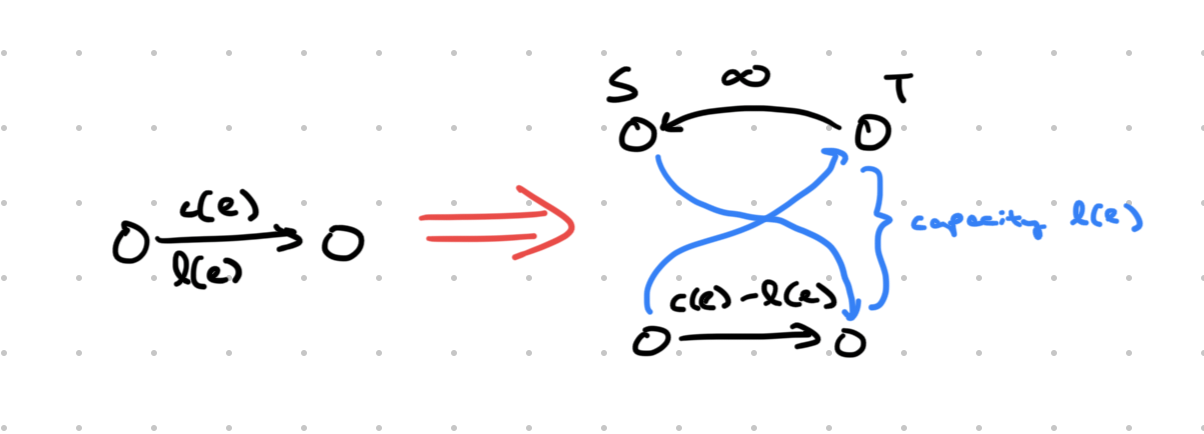

I will first illustrate the flow graph we can set up to solve this problem, then explain why it works. First, we create two new nodes $S$ and $T$ and connect $T \rightarrow S$ with capacity $\infty$. Then, we apply the following transformation to every edge $e = u \rightarrow v$:

• Connect $u \rightarrow T$ and $S \rightarrow v$ with capacity $l(e)$.
• Reduce the capacity of $u \rightarrow v$ to $c(e) - l(e)$.

The idea is that in this transformed network, flow through $e$ will first be routed through the blue cycle ($u \rightarrow T \rightarrow S \rightarrow v$) until all $l(e)$ units are saturated, and only the excess will pass through $e$ itself. This then means that all lower bounds will be satisfied iff all blue edges are saturated. To determine whether this is possible, we just need to run a maximum flow from $S$ to $T$ and check whether the resultant flow is exactly $\sum l(e)$.

To recover the actual circulation, just take the flow $g(e)$ found in the auxiliary network and add back the lower bound: $f(e) = g(e) + \ell(e)$.

Feasible Flow With a Source and Sink

Now suppose we do have a source $s$ and sink $t$, and we want any flow from $s$ to $t$ respecting the lower bounds. The conservation constraint should hold everywhere except $s$ and $t$.

We reduce this to the circulation case with one extra edge: add an edge from $t$ back to $s$ with lower bound $0$ and capacity $\infty$. This "return edge" carries the net flow value back from the sink to the source, so conservation now holds at $s$ and $t$ as well, and the whole network becomes a circulation problem. Apply the construction above, and the flow value of the original network is exactly the flow sent along the $t \to s$ edge.

Maximum / Minimum Flow With Lower Bounds

Often we don't just want a feasible flow — we want the maximum (or minimum) flow from $s$ to $t$ subject to the lower bounds. Do it in two phases:

1. Find a feasible flow using the construction above. If the blue edges can't be saturated, no valid flow exists and we stop.

2. Augment in the residual network. Remove the auxiliary $S$, $T$, and the $t \to s$ edge, then run an ordinary max flow from $s$ to $t$ on the leftover residual graph. Adding these augmenting paths to the feasible flow keeps it feasible (we only ever increase flow on edges that have spare capacity) while pushing the $s \to t$ value as high as possible.

   For minimum flow, instead run a max flow from $t$ to $s$ in the residual graph and subtract it: we cancel as much circulating flow as possible while keeping every edge above its lower bound.
